Debug Draw base class. You cannot set DebugDraw delegates with this class. Use an instance of one of these implementations: More...

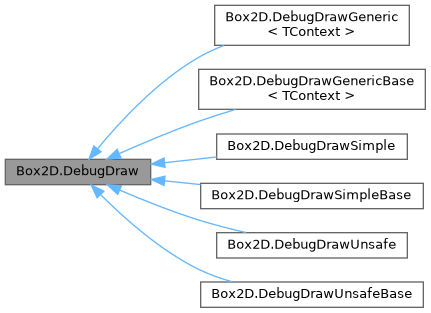

Inheritance diagram for Box2D.DebugDraw:

[legend]

Properties
ref AABB	DrawingBounds `[get]`
	Drawing bounds for the debug draw.

bool	UseDrawingBounds `[get, set]`
	Option to restrict drawing to a rectangular region. May suffer from unstable depth sorting.

bool	DrawShapes `[get, set]`
	Option to draw shapes.

bool	DrawJoints `[get, set]`
	Option to draw joints.

bool	DrawJointExtras `[get, set]`
	Option to draw additional information for joints.

bool	DrawBounds `[get, set]`
	Option to draw the bounding boxes for shapes.

bool	DrawMass `[get, set]`
	Option to draw the mass and center of mass of dynamic bodies.

bool	DrawBodyNames `[get, set]`
	Option to draw body names.

bool	DrawContacts `[get, set]`
	Option to draw contact points.

bool	DrawGraphColors `[get, set]`
	Option to visualize the graph coloring used for contacts and joints.

bool	DrawContactNormals `[get, set]`
	Option to draw contact normals.

bool	DrawContactImpulses `[get, set]`
	Option to draw contact normal impulses.

bool	DrawFrictionImpulses `[get, set]`
	Option to draw contact friction impulses.

bool	DrawContactFeatures `[get, set]`
	Option to draw contact feature ids.

bool	DrawIslands `[get, set]`
	Option to draw contact friction impulses.

Detailed Description

Debug Draw base class. You cannot set DebugDraw delegates with this class. Use an instance of one of these implementations:

or implement one of these base classes:

Pass your DebugDraw to World.World.Draw to draw the world. Abstract base classes default to all drawing options enabled.

The documentation for this class was generated from the following file:
